NF-8601S NETWORK TROUBLESHOOTER

Combo of Ethernet Test & TDR Too

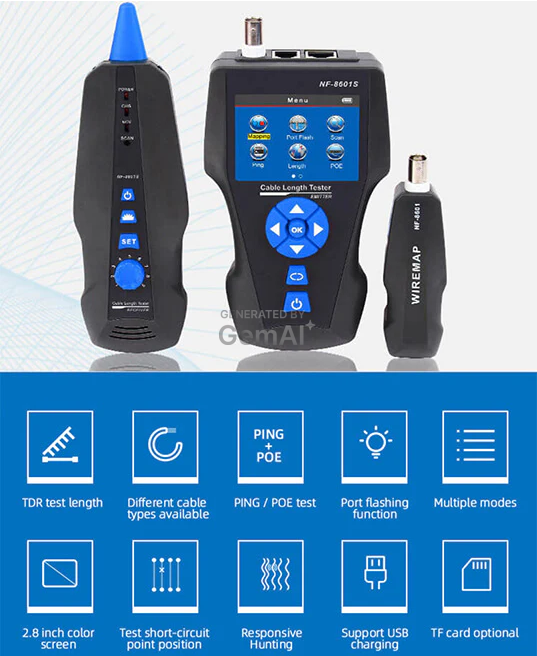

.Measure network cables and locate faults; .Check status of network cables; . Port blinking to locate ports and cables on panel; . Ethernet test for power provider and performance; . 2.8-in LCD screen, USB charging, and extra TF storage.

Multiple Cable Types Support

NF-8601S supports to test and trace for multiple cables, including:

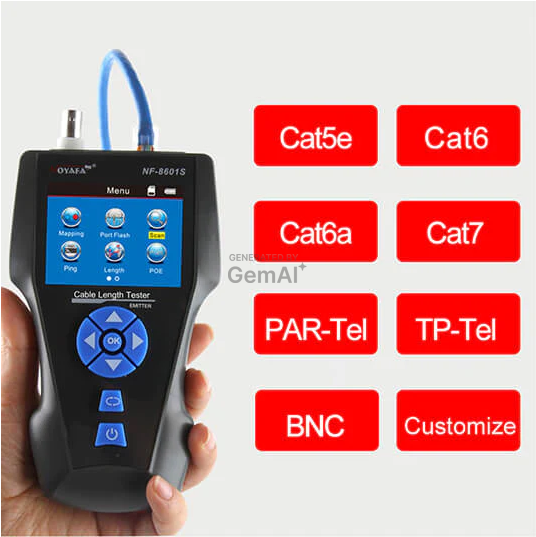

CAT5/6/7 network cables, . 4+2 and 8+2 lan cables, : power cables, .telephone RJ11 cables, . coaxial cables.
TDRTEST

Length Meter & Fault. Locator

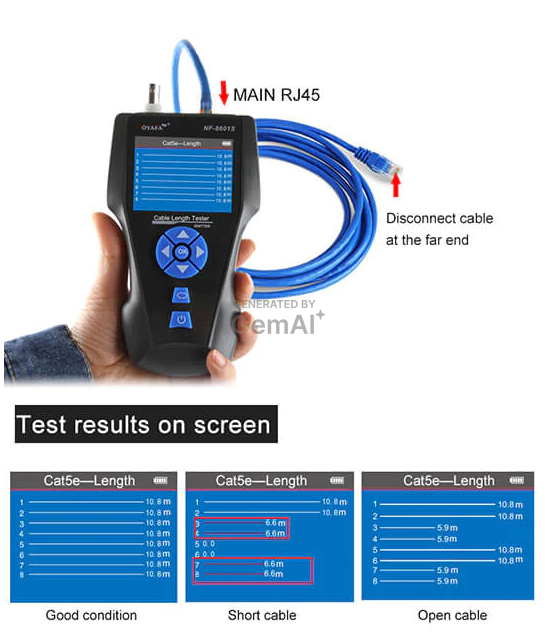

With TDR support, NF-8601S can not only. measures the length of cables but also locate the wiring faults..
CUSTOMIZED WIRE MEASURE

Measure 4+2 & 8+2 Cables

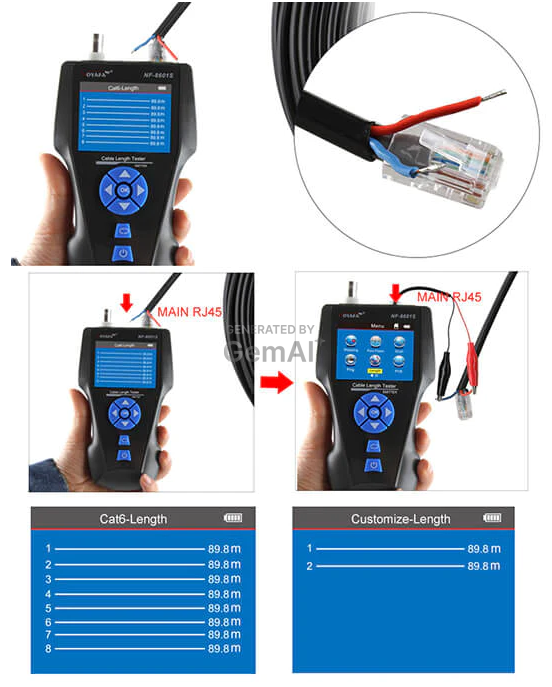

Insert the network cable into the RJ45 port. Or connect the alligator clamps and attach the extra wires to the clamps. Measure up to 10 and down to 2 wires at a time.
CHECK CABLE STATUS

Check Cable Wiring

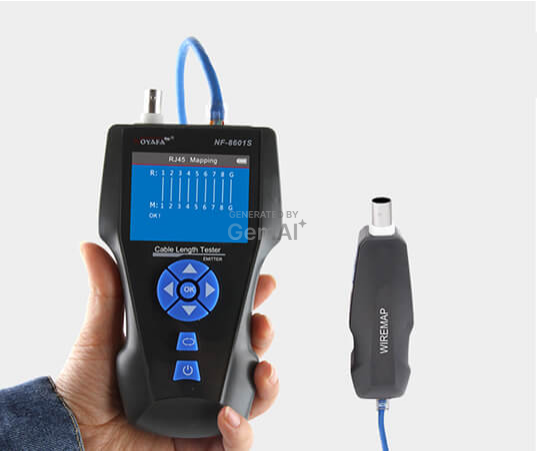

Plug in the network cables (RJ45, RJ11, Coax) into NF-8601S. Test the mapping status. Identify faults like shorts, opens, crossings.
FLEXIBLE CABLE TRACING

Three Cable Tracing Modes

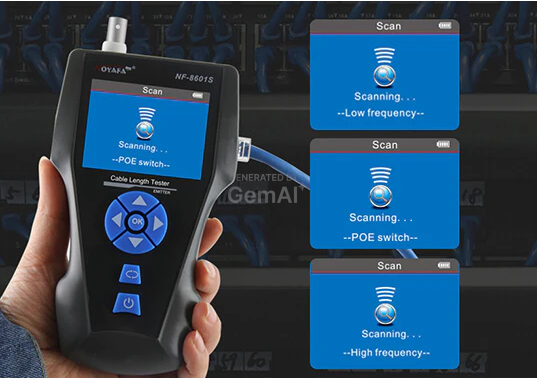

.When cables are few around, Low- frequency mode will be enough. .If there're bundled and messy cables, High-frequency mode helps. .For cables with low voltage, POE switch mode protects the device.
POETEST
Network Statys. Check

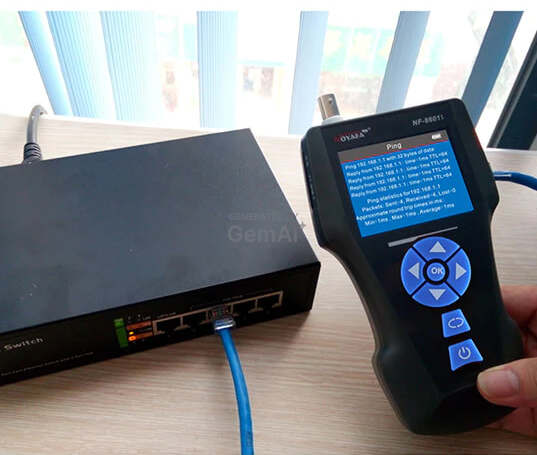

Run a Ping test for your network. See the exact. values of data packet, maximum and minimum times for sending and receiving data.

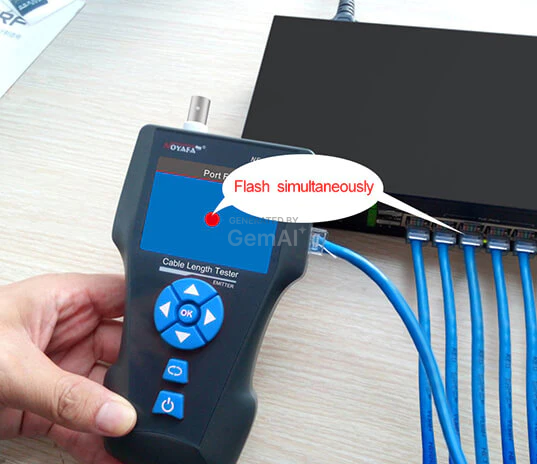

Port Blinking

Connect one end of the Ethernet cable into NF- 8601s. Run the Port Flash mode. Locate the target port on a switch/router/panel.

External Data Storage

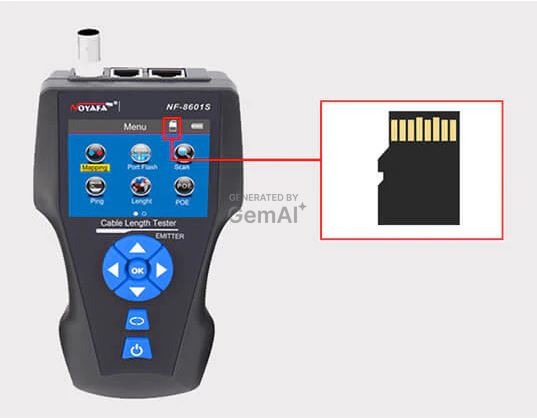

The product is shipped out with a 1GB TF card. You can save multiple data in the card without testing again. Meanwhile, exporting the data to a PC becomes easier.
